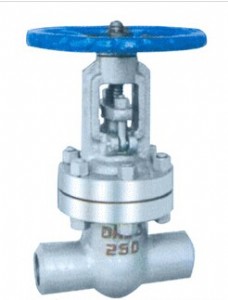

產品名稱：電動焊接閘閥產品型號：z960y/z962y產品口徑：dn50-600產品壓力：1.0～32.0mpa產品材質：鑄鋼、不銹鋼等產品簡介：制造標準：中國gb、機械部jb、化工標準hg、美標api、ansi、德標din、日本jis、jpi、英標bs生產。閥體材質：銅、鑄鐵、鑄鋼、碳鋼、wcb、wc6、wc9、20#、25#、鍛鋼、a105、f11、f22、不銹鋼、304、304l、316、316l、鉻鉬鋼、低溫鋼、鈦合金鋼等。工作壓力1.0mpa-50.0mpa。工作溫度：-196℃-650℃。連接方式：內螺紋、外螺紋、法蘭、焊接、對焊、承插焊、卡套、卡箍。驅動方式：手動、氣動、液動、電動。上�；菹拈y門有限公司擁有全球最頂尖的生產設備和技術工程師，有能力按照各國標準以及各種行業標準生產制造優質閥門。產品詳情執入標準administer standard● 制造與驗收技術條件按日本火力發電用閥門標準e101和jb/t3595-93的規定；● 結構長度按e101的規定或按用戶提供尺寸● 焊接坡口接電力工業管理標準78dg的規定或按用戶提供尺寸。● the manufalture【敏感詞】aueptanle specigication shan be based on the japanese standard e101 applied for the thermal powerand jb/t3595-93● the length shall bein line with e101【敏感詞】by user’s speeification.● welding groove shan be in auordanle with power industrh spe-cification 78dg【敏感詞】hg user’ specification● the size in inclose is old production’s size性能規范property【敏感詞】specifiecation產品型號 product type公稱壓力pn(mpa)nominal pressure試驗壓力test pressure工作壓力working pressure工作溫度(℃)working temperature適用介質appicable medium強度試驗sheel test密封試驗/上密封實驗seal testz960y-2502537.527.5-≤425水、蒸汽、water,steamz960y-3203248.036.0-≤425z960y-p54100-30.022.0p5410≤540蒸汽 steamz960y-p54170-48.036.0p5417≤540主要零件材料matecrial for main parts零件名稱part name材料牌號material designation閥體bodywcbwc6wc9閥板discwcbwc6wc9閥蓋bonnet2512cr1mo1va閥桿stem1cr17ni220cr1mo1va閥座seat2512cr1mo1va密封環sealing rings軟鋼(增強柔性石墨)s soft steel (flexible graphite)s軟鋼s soft steelf軟鋼f soft steel填料packing增強柔性石墨fexible graphite支架yokewcbwcb或wc6閥桿螺母stem nut45(zcuzn25a16fe3mn3)四開環four piece ring1cr1320cr1mova主要尺寸及重量main dimensions【敏感詞】weight公稱通徑dnnominal diameter主要外形尺寸和連接尺寸main external【敏感詞】connecting dimensions電動裝置electric dewice重量weightdlhl1l2z960y-250100844061164437277dzw452341251004831402437277dzw603431751587111650554309dzw1806382252008641650554309dzw18065430028010672106764398dzw3501973z960y-320100965331236437277dzw602911251186101302437277dzw603151501487621403526283dzw906721751487621650554309dzw18068422522210411650554309dzw180696z960y-p54100v1751487621650554309dzw18068322522210411650554309dzw18070425022210411795554309dzw180121430029412452080554309dzw2502125z960y-p54170v125986301230437277dzw6031222518610601680554309dzw180140130027813972265764dzw500283432531014482265690398dzw500263235033815502536715dzwc-45591
