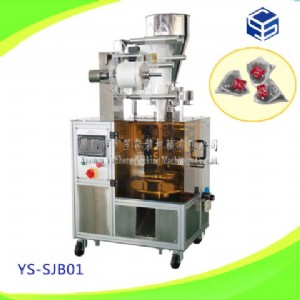

三角包袋泡茶包裝機,尼龍三角袋包裝機
applications/適用于:
be used for automatically packing products as green tea ,black tea,flower tea ,health tea,medicine tea,granule【敏感詞】so on .
適用于:綠茶、紅茶、花茶、保健茶、中藥茶、顆粒等。
functions:
this unit can perform either three sides sealing【敏感詞】triangle teabag .just need single bond to change the bag between three sides sealing【敏感詞】triangle shape.
功能:1.用于平面包裝、三角立體包裝等產品,只需單鍵即可
輕松切換平面包裝、三角立體包裝二種包裝型式
2. packaging capacity :3000bags/h (determined by packing material)
2.包裝能力達3000袋/小時(實際能力根據物料特性而定)。
3.applicable packing materials:nylon film with thread【敏感詞】label.
3.該機器可使用帶線帶標簽 的包裝卷膜。
4.the precision volumetric metering way very easily in the transformation of filling material. electronic scale metering can be collocated according to the material.
4.精密轉盤式計量下料方式可以很容易在變換填充物;根據物料特性可配置電子稱計量下料方式;
5.human-computer interface,omron plc control,adopted thepanasonnic double servo motor to make the bag .supplied complete setting functions.easy operating
5.觸控人機面板,歐姆龍plc控制器,采用松下雙伺服馬電機制袋,提供完整設定功能,可依照需求調整多項參數,提供使用者最大操作彈性。
6.main motor overload protection device
6.主馬達保護裝置(循環超時)
7.packaging material tension automatic adjustment device
7.包裝材料張力自動調節裝置
8.the machine will automatically stop when issued the warning.
8.故障自動報警并自動停機。
四、技術參數/technical data
項 目/item |
內容/content |
包裝速度/capacity |
30--50包/分鐘具體視包裝膜質量及物料的特性確定30-50bags/min (determined by packing material) |
計量精度/filling precision |
≤±2%(取決包裝原物料不同,而有差異)(determined by packing material) |
制袋尺寸/bag size |
60-80(w)*40-80(l)mm |
包裝膜寬/packing film |
120mm、140mm、160mm |
制袋形式/sealing type |
包裝材料用卷膜,機器自動制袋為三角錐形袋及扁平袋 |
計量范圍/filling range |
2-10ml(實際根據物料特性而定) |
薄膜厚度/film thickness |
0.04-0.06mm |
包裝材料/packing material |
尼龍、聚酯網布、無紡布、可超聲波封口的材料 nylon,polyester netnon-woven fabrics,.ultrasonic sealing materials |
放卷外徑rolled outer diameter |
≤∮400mm |
放卷紙芯內徑rolled paper core inside diameter |
∮76mm |
整套耗氣量/air consumption |
0.6mpa 0.4m3/min |
整套設備總功率/total power |
2.2kw |
電源/power |
單相/single 220v 50hz |
空壓機/air compressor |
不小于1立方less than 1 cube |
整套設備總高/dimension |
780× 940×1800㎜ |
