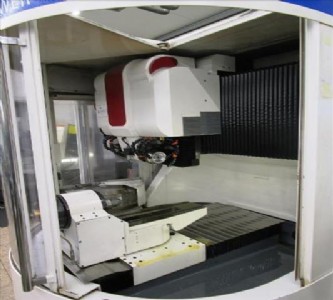

universal tool【敏感詞】cutter grinder (cnc controlled)數控萬能工具磨床

made by walter瓦爾特生產, model 型號helitronic power, serial no. 645247編號645247, year 2005出廠2005, 控制系統control system hmc 600

deｓｃｒｉｐｔion描述:

suitable to regrind【敏感詞】manufacture wood【敏感詞】metal working tools of all kinds.

適合生產與修磨所有硬質合金與木工刀具

specifications規格:

working range: longitudinal traverse (x- axis) 470 mm, vertical traverse (y-axis) 320 mm, cross traverse (z-axis) 660 mm, rotary table swivelling range (c-axis) +/- 200°, work head spindle iso 50, max. diameter of workpiece 320 mm, max. length of workpiece for peripheral grinding 350 mm, max. dia. of grinding wheel 200 mm, peak performance 11,5 kw, grinding spindle speed 0 - 7000 rpm., connected load approx. 25 kva (400 volts / 50 hz), weight approx. 4500 kg, dimensions w x d x h = 2150 x 2930 x 2273 mm, colour grey ral 7035 / grey ral 7043.

工作范圍：x軸行程470mm，y軸行程320mm， z軸行程660mm，c軸可旋轉+/- 200°，工件軸適配iso50，工件最大直徑320mm，工件最大長度350mm， 砂輪最大直徑200mm，主軸功率11.5kw，主軸速度范圍0-7000rpm,裝載功率約25kw,400 volts / 50 hz / 25 kva，重量約4500公斤，尺寸w x d x h =  2150 x 2930 x 2273 mm，顏色ral 7035 / 7043灰。

accessories附件:

discloader for up to 40 workpieces,

software package 1 (cylindrical cutters圓柱刀具),

software package 2 (tapered helical cutters圓錐螺旋銑刀),

software package 3 (drills【敏感詞】step drills鉆頭和階梯鉆),

software package 5 (disc tools盤狀刀具),

software package 8 (taps絲錐),

software package 16 (warmup熱機程序),

software package 26 (countersinks锪鉆軟件),

software heli-flute & cone "flute computing program software"開槽軟件

automatic fire extinguishing system,自動滅火系統

stepless speed control, 步進控制

pneumatic workpiece clamping, 液壓工件夾持

automatic central lubrication,自動中央潤滑

probe, 探針

band filter system 400 litres with pump, 帶式過濾帶油泵

oil collecting pan, 集油盤

2 grinding wheel flanges.砂輪桿
