universal tool【敏感詞】cutter grinder (cnc controlled)萬能工具磨床（數控）

deｓｃｒｉｐｔion描述：

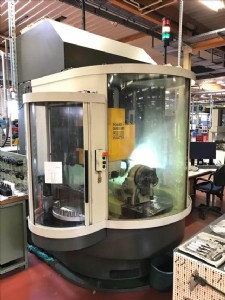

made by walter瓦爾特生產, model helitronic regrinder, s/n編號 640216, year 出廠2002年,

suitable to manufacture【敏感詞】regrind metal【敏感詞】woodworking tools of all kinds.

適合生產及修磨各種木工及金屬加工刀具。

specifications規格：

longitudinal traverse 縱向行程(x-axis) 490 mm, vertical traverse 垂直行程(y-axis) 320 mm, cross traverse 交叉行程(z-axis) 660 mm, rotary table swivelling range 回轉角度(c-axis) +/- 200擄, work head 工件座規格iso 50, centre height (with / without worktable) 中心高度（有/無工作臺）145 / 190 mm, max. diameter of workpiece 最大工件直徑240 mm, max. length of workpiece 最大磨削工件周邊長度370 mm, max. dia. of wheel 最大砂輪直徑200 mm, peak performance 磨削軸峰值功率11,5 kw, grinding spindle speed 磨削軸速度范圍0 - 8500 rpm, connected load approx. 裝機容量約25 kw (400 volts / 50 hz), dimensions 體積約w x d x h = 2970 x 2650 x 2650 mm, weight approx. 重量約4450 kg, colour grey 顏色ral 7035 / grey ral 7043.

accessories配件:

control hmc 500 xp,控制系統

pallet loader for cylindrical tools from 2-32 mm2上料機,

2 pallets for loading system 提供兩個上料機的托盤

software package 1 (cylindrical cutters圓柱刀具),

software package 2 (tapered helical cutters圓錐螺旋銑刀),

software package 3 (drills【敏感詞】step drills鉆頭和階梯鉆),

software package 6 (woodworking tools木工刀具),

software package 7 (profile tools輪廓刀具),

software package 16 (warm up program熱機程序),

software package 18 (dressing修整砂輪),

software package 27 (flexible programming靈活編程),

heliflute & cone flute calculating software 槽計算軟件,

electrostatic mist extractor靜電油霧分離器,

stepless speed control步進速度控制,

probe,探針

pneumatic workpiece clamping液壓工件夾持,

electrostatic mist extractor靜電油霧分離器,

bandfilter 180 l (without pump)帶式過濾器180l（無泵）,

2 grinding wheel flanges2根砂輪桿.
