deｓｃｒｉｐｔion:描述

suitable to automatically sharpen pkd-tipped milling cutters, cylindrical tools, discoid tools etc.

適合于自動磨削pkd-焊接刀具、圓柱刀具、盤形刀具等等

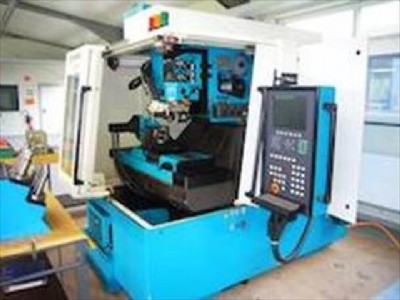

erosion machine for diamond tipped metalworking tools (cnc-controlled)

made by vollmer, model qwd 750 （由qwd75p serial no.170, year1999，床身翻新）

specifications規格:

milling cutters outside dia. up to 最大銑刀外徑達到200 mm,

cutting edge length up to最大銑刀切削邊長度達200 mm,

shaft tools diameter 桿狀刀具直徑10 - 100 mm,

cutting length max.桿狀刀具最大切削長度 500 mm,

discoid tools outside dia. up to 盤狀刀具外徑達到200 mm,

max. workpiece weight 最大工件重量20 kg,

angential clearance angle to 6°,

radial clearance angle -10° to +6°,

radial【敏感詞】axial clearance angle 30°,

chamfering up to 45°, spiral cutting to 45°,

traversing range x-axis 軸行程長度220 mm,

traversing range y-axis 軸行程長度280 mm,

traversing range w-axis 軸行程長度150 mm,

e-axis swivel range 回轉行程120°,

spindle speed 磨削軸速度80 - 2000 rpm,

workpiece holder 工件夾持標準iso 40,

dimensions machine機床大小 w寬 x d深 x h高 =  2235 x  2630 x  2270 mm,

weight 重量大約ca. 3500 kg,

connected load 裝載負荷大約ca. 3.4 kw (400 volts / 50 hz),

colour 顏色turquoise blue ral 5018 / light grey ral 7047.

accessories附件:

total enclosure全包圍,

cooling system for dielectric fluid電解液冷卻系統,

tailstock托架,

probe探針,

automatic central lubrication自動中央潤滑,

machine lamp機床燈,

dust extractor抽風機,

stepless speed control無極速度控制,

automatic fire extinguishing system自動滅火系統
