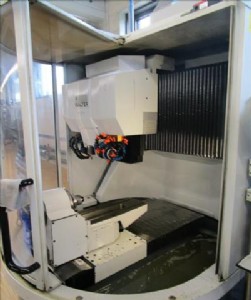

universal tool【敏感詞】cutter grinder (cnc controlled)數控萬能工具磨床

made by walter瓦爾特生產, model 型號helitronic power power, s/n編號 7006, year出廠 1998, 系統walter xp

deｓｃｒｉｐｔion描述:

suitable for manufacturing【敏感詞】regrinding wood-【敏感詞】metalworking tools of all kinds.

適合生產與修磨所有硬質合金與木工刀具

specifications規格:

longitudinal traverse (x-axis) 490 mm, vertical traverse (y-axis) 320 mm, cross traverse (z-axis) 660 mm, rotary table swivelling range (c-axis) +/- 200°, work head iso 50, centre height (with / without worktable) 145 / 190 mm, max. diameter of workpiece 240 mm, max. length of workpiece 370 mm, max. dia. of wheel 200 mm, peak performance 18 kw , grinding spindle speed 0 - 8500 rpm, connected load approx. 25 kw (400 volts / 50 hz), dimensions w x d x h = 2170 x 2930 x 2280 mm, weight approx. 4500 kg, colour grey ral 7035 / grey ral 7043.

工作范圍：x軸行程490mm，y軸行程320mm， z軸行程660mm，c軸可旋轉+/- 200°，工件軸適配iso50，中心高（帶/不帶工作臺）145/190mm，工件最大直徑240mm，工件最大長度370mm， 砂輪最大直徑200mm，主軸功率18kw，主軸速度范圍0-8500rpm,裝載功率約25kw,400 volts / 50 hz / 25 kva，重量約4450公斤，尺寸w x d x h =  2170 x 2930 x 2280 mm，顏色ral 7035 / 7043灰。

accessories附件:

control hmc 500 xp控制系統,

software package 1 (cylindrical cutters圓柱刀具),

software package 3 (drills【敏感詞】step drills鉆頭及階梯鉆),

heliflute & cone flute calculation software開槽軟件

stepless speed control,步進速度控制

probe,探針

automatic central lubrication自動中央潤滑

pneumatic workpiece clamping,液壓夾持系統

oil collecting pan,集油盤

2 grinding wheel flanges砂輪桿.
